AVAILABLE REAL WOOD VENEERS, COLORS AND VERSIONS

CLICK TO ENLARGE

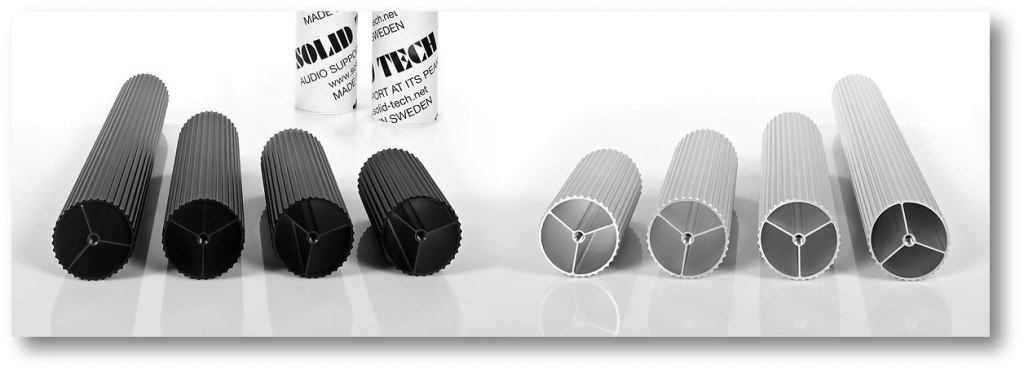

Black or Silver?

Radius corner-pillars are made from the finest Swedish Aluminum extrusion and beatifully anodized in either deep black or satin silver finish.

The choice of Aluminum and extensive internal bracing provides for a very favorable weight/stiffness ratio and a non ringing design.



Four well chosen lengths constitute standard range, namely 65,5, 150, 234,5 and 319mm.



Are you in the need for a different mix of corner-pillars in your Radius kit? No problems at all! If the actual design allows for an exchange we can tailor made to your needs and wishes. If that were still not good enough, we are making custom lengths between 30-650mm.

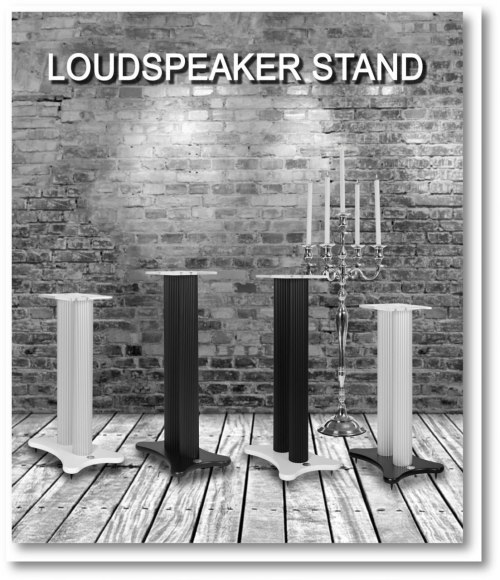

Base: 330 x 240mm



Top: 230 x 170mm



Height: 620 or 720mm



Click here to enlarge



Click here to enlarge



Click here to enlarge



Click here to enlarge































                           Width: 680mm



                           Depth: 500mm



                           Height: 120mm



                           Maximum load/shelf: 60kg

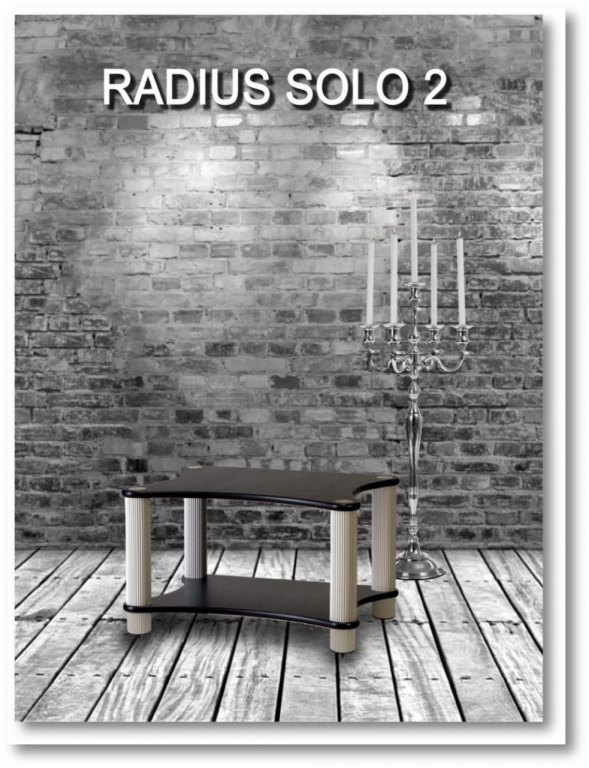

Width: 680mm



Depth: 500mm



Height: 460mm



Maximum load/shelf: 60kg



Width between pillars: 520mm



Distance between shelves: 319mm























Width: 680mm



Depth: 500mm



Height: 545mm



Maximum load/shelf: 60kg



Width between pillars: 520mm



Distance between shelves: 150 and 235mm,

can be assembled in any order.



Click here to enlarge

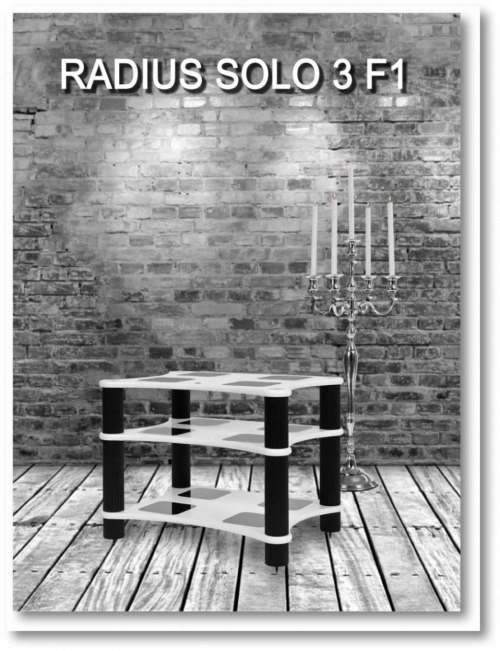

The picture shows a Radius Solo 3 with black

corner pillars and 3 x Formula 1 option.

























Width: 680mm



Depth: 500mm



Height: 880mm



Maximum load/shelf: 60kg



Width between pillars: 520mm



Distance between shelves: 150, 235 and 319mm, can be assembled in any order.



Click here to enlarge





´

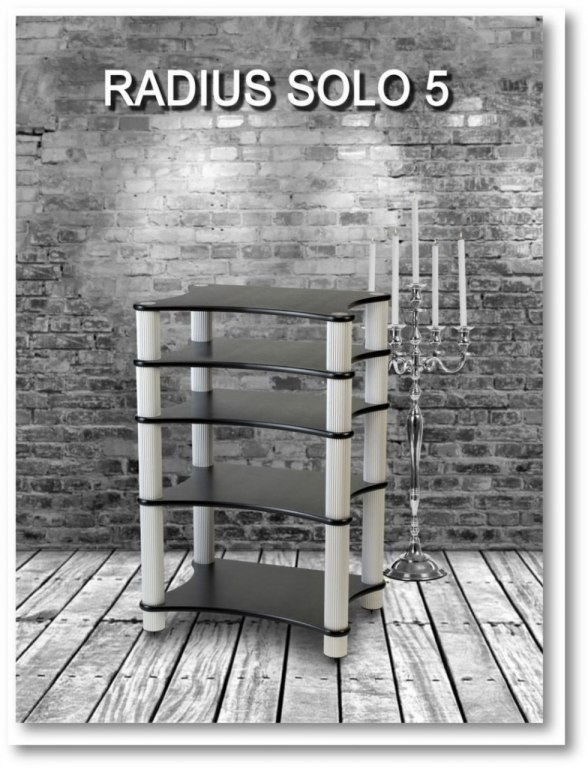

Width: 680mm



Depth: 500mm



Height: 1055mm



Maximum load/shelf: 60kg



Width between pillars: 520mm



Distance between shelves: 150,150, 235 and 319mm, can be assembled in any order.





Width: 1860mm                                                                     Depth: 500mm                                                Height: 460 and 375mm



Maximum load/shelf: 60kg                                                   Width between pillars: 500mm (center), 510mm left and right section



Distance between shelves: 150 and 235mm. Please notice that the lower shelf in the center section also can be mounted so that the distance to the upper shelf becomes 235mm.





Width: 1270mm                                                             Depth: 500mm                                                                        Height:460mm



Maximum load/shelf: 2x60kg                             Width between pillars: 520mm                     Distance between shelves: 319mm



Click here to enlarge





Width: 1270mm                                                              Depth: 500mm                                                                      Height: 545mm



Maximum load/shelf: 2x60kg                                        Width between pillars: 520mm



Distance between shelves: 150 and 235mm, can be assembled in any order.







Width: 1590mm                         Depth: 500mm                         Height - side: 545mm                         Height - center: 630mm



Maximum load side shelves: 60kg                                           Maximum load center shelves: 50kg



Width between side pillars: 510mm                                         Width between center pillars: 830mm



Distance between center shelves: 319mm                              Distance between side shelves: 150 and 235mm







Width: 2180mm                         Depth: 500mm                         Height - sides: 545mm                         Height - center: 630mm



Maximum load side shelves: 60kg                                         Maximum load center shelves: 50kg



Width between side pillars: 510mm                                        Width between center pillars: 820mm



Distance between center shelves: 319mm                             Distance between side shelves: 150 and 235mm
