The Discs of Silence the world’s second best passive isolator? 88,48% reduction at 20Hz!
The Discs of Silence is our workhorse isolator as in its Heavy- Duty version can effectively isolate up to 175kg (385lbs) per set of four discs.
When we developed the Discs of Silence was our goal to create the most efficient and load capable isolator as possible without taking too much height in claims. It would also be height -adjustable and be adaptable to uneven loads.

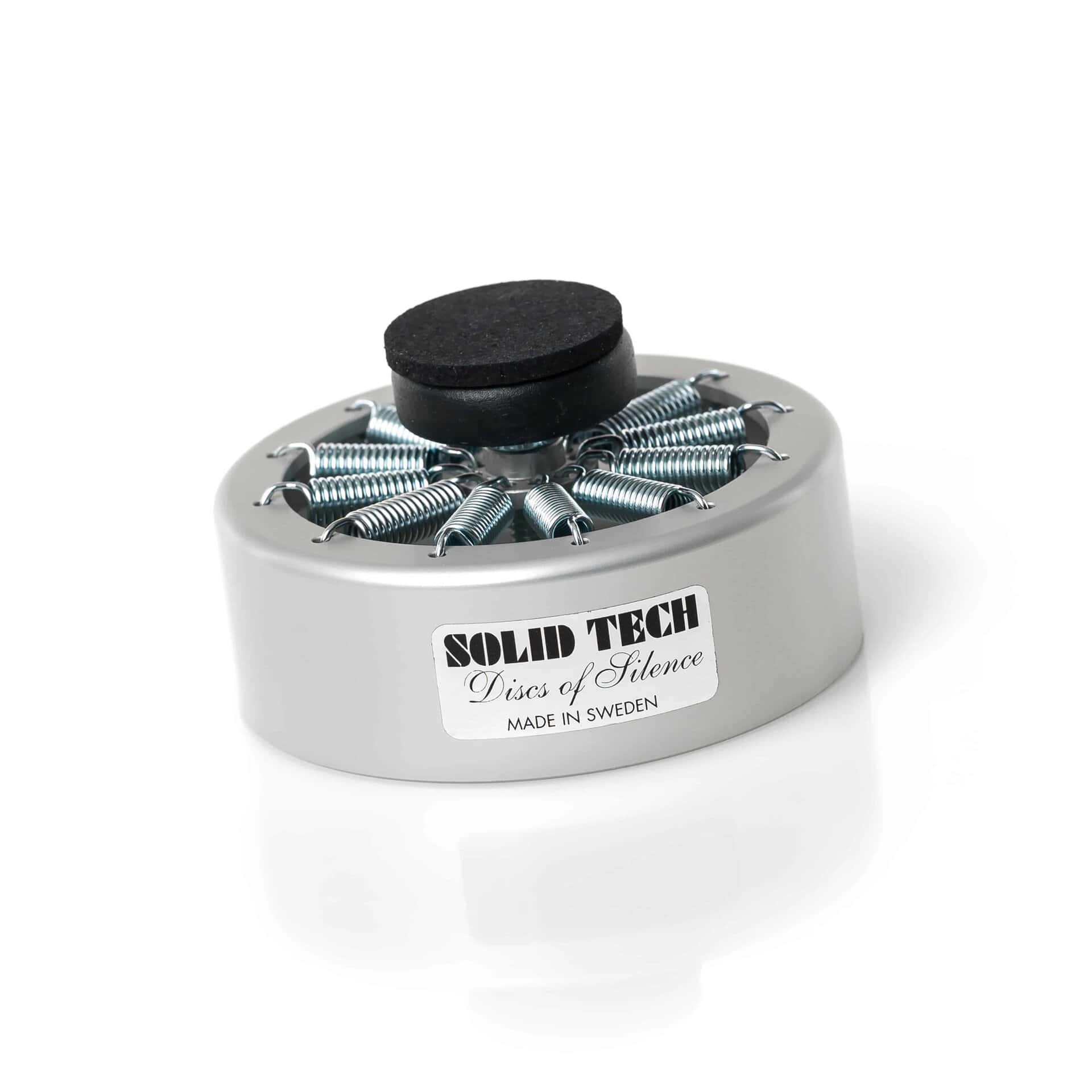

The Discs of Silence isolation-system consists of a cylindrically formed, sturdy and anodised Aluminum base, extension-springs, center-hub and a height-adjustable center-screw with a damping layer for mechanical coupling to the component.

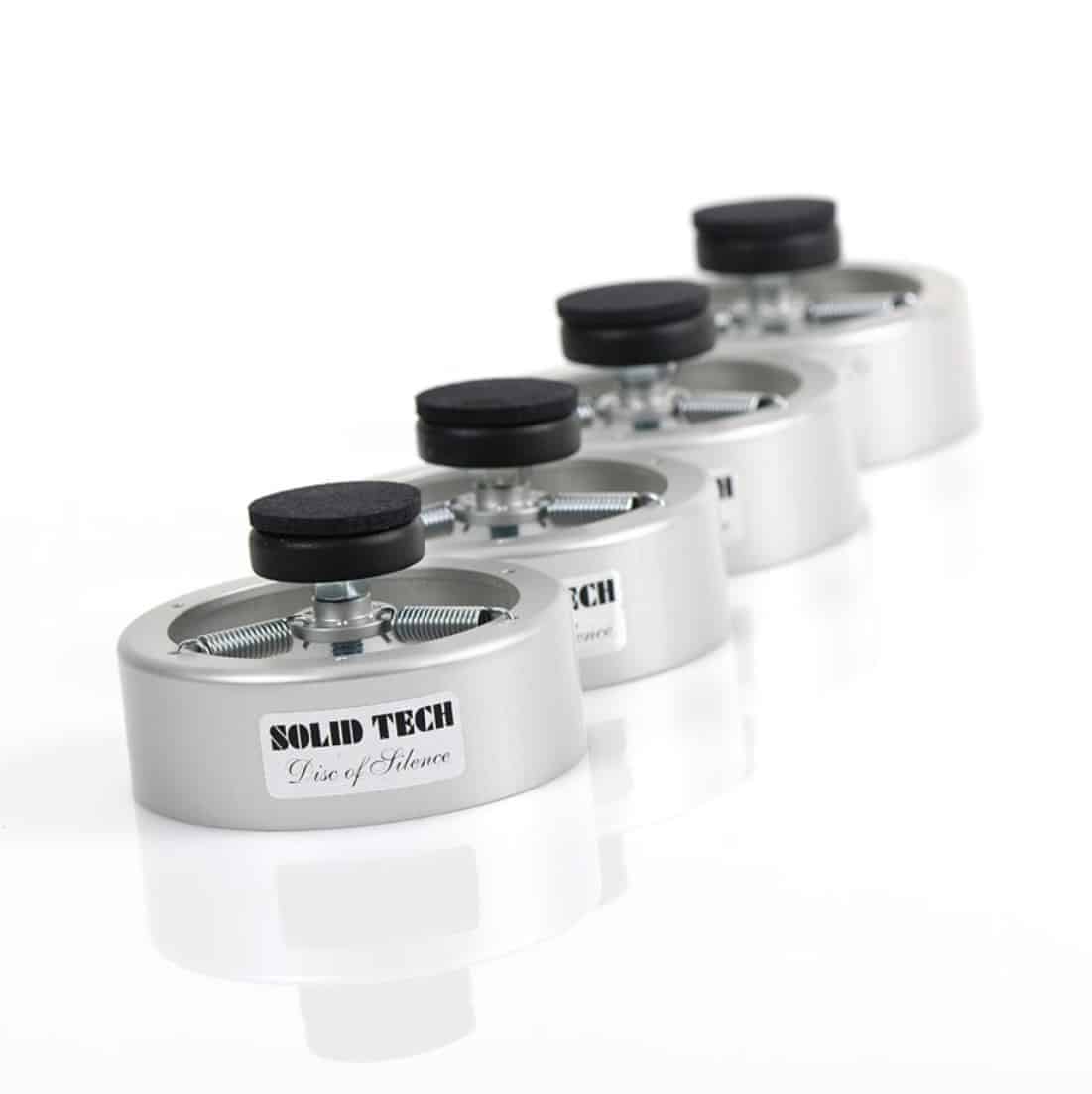

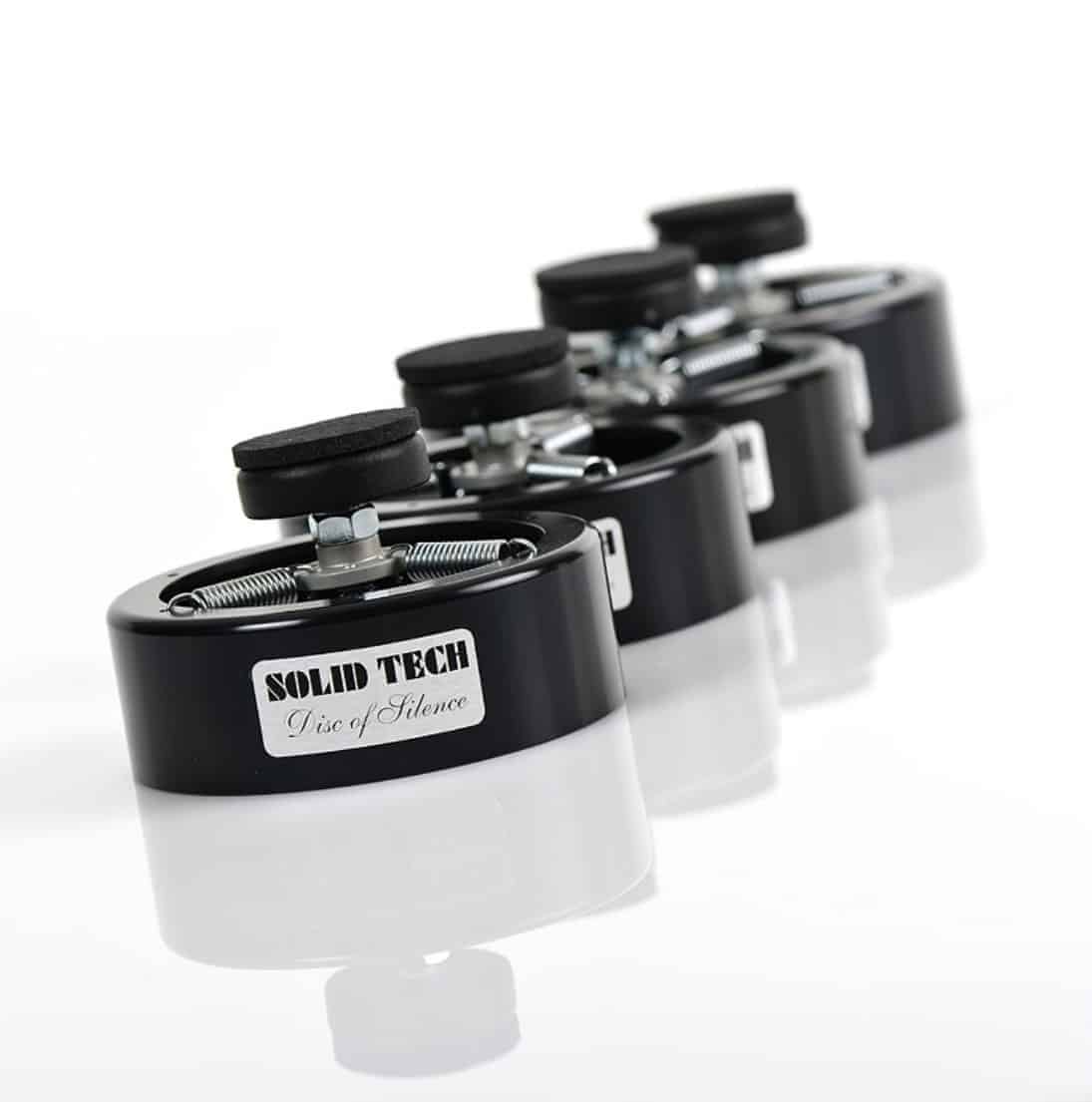

The Discs of Silence are available in 3 or 4pack.
The equally simple as ingenious horizontal location of the extension-springs allows a large capacity without taking as much height in claims. When correctly loaded the operating height is 32-35mm. Correctly adapted and loaded is the resonance frequency well below 4Hz. Ensuring isolation even in the lowest and most degrading frequencies, resulting in much higher fidelity without tonal highlighting and masking such as more dynamic, cleaner transient response, wider and deeper soundstage, increased low level information, tighter bass and silkier highs.

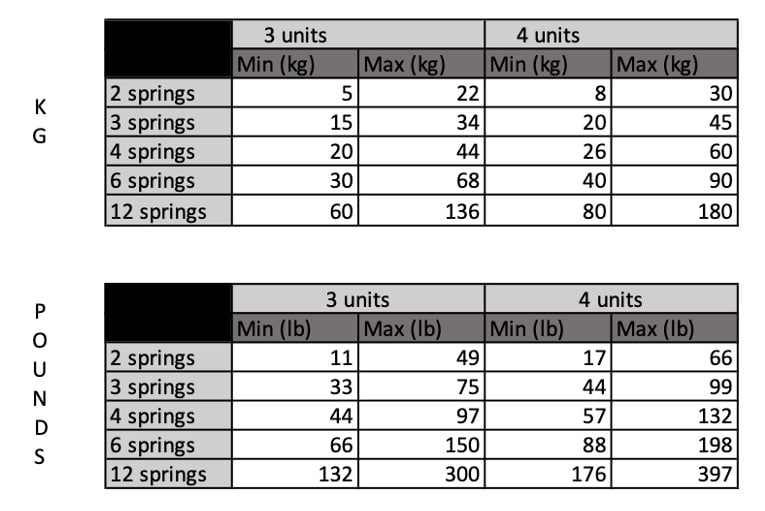

Optimal pressure on each isloator is at least in-between max and min but preferably as close as possible to max load according to the table below.
Optimized adaptation to a specific weight of each disc is obtained by adding the right number of springs, as well as the height adjustment of the center-screw.
Each disc can be configured with two, three, four or six springs depending of the amount of load. In the case of supply are three springs mounted and included and then the system can be loaded with max 45 kg when the center screw is adjusted to its top position. Additional spring-set can be obtained and then doubled the capacity to 90 kg per set of four discs. In the case of supply of the HD version are twelve springs per disc included but only six mounted. See below for configuration.
Optimized adaptation to a specific weight of each disc is obtained by adding the right number of springs, as well as the height adjustment of the center-screw.
Each disc can be configured with two, three, four or six springs depending of the amount of load. In the case of supply are three springs mounted and included and then the system can be loaded with max 45 kg when the center screw is adjusted to its top position. Additional spring-set can be obtained and then doubled the capacity to 90 kg per set of four discs. In the case of supply of the HD version are twelve springs per disc included but only six mounted. See below for configuration.

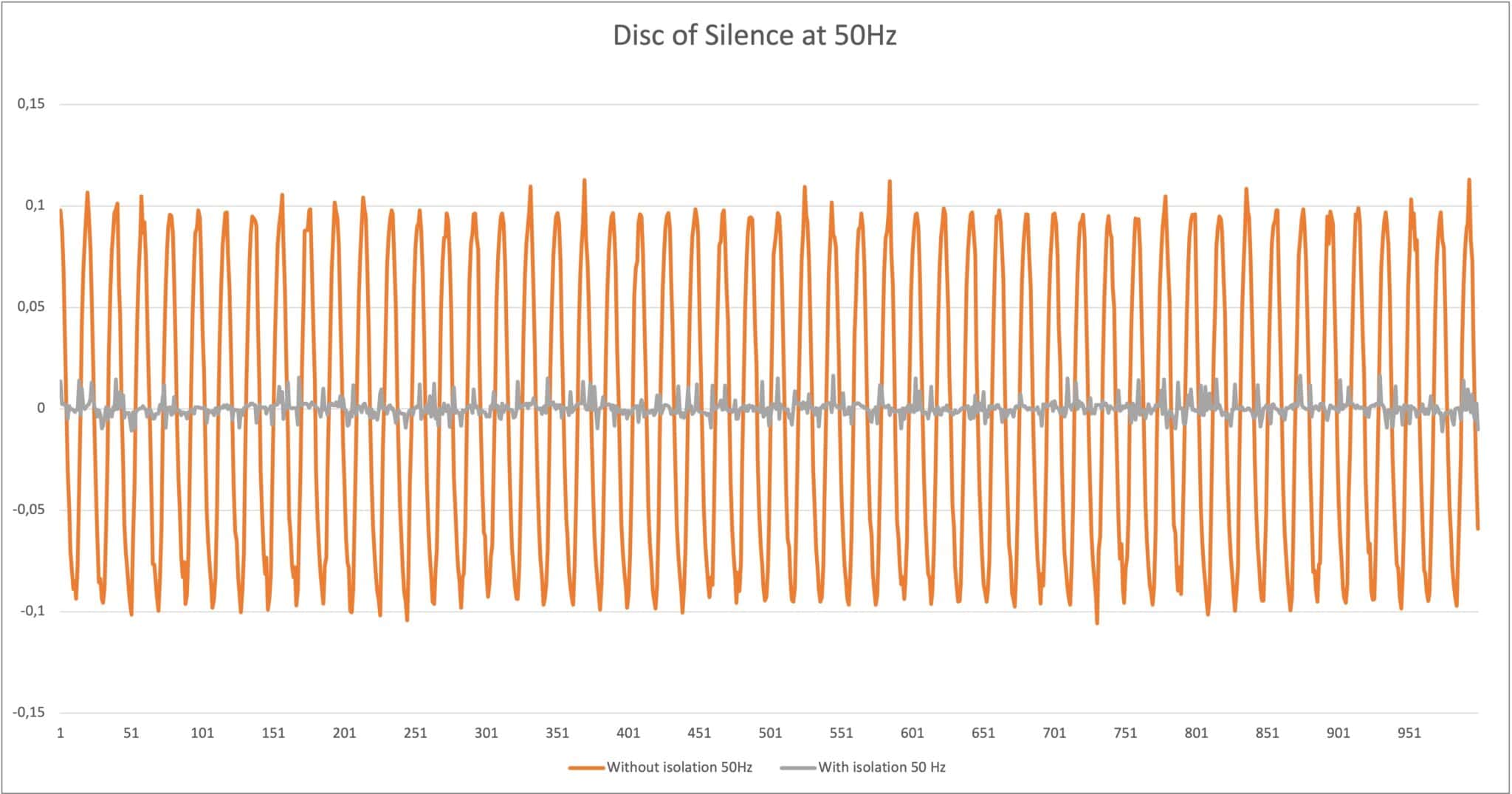

30kg loaded on 4 isolators with 3 springs per isolator.
Peak improvement with isolation: 86%
Vibration source is situated below the isolated object and the sensor is situated above the object with a shelf in-between.
Isolators DOWNLOADS

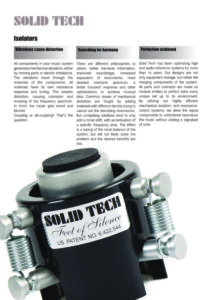

Isolator data sheet

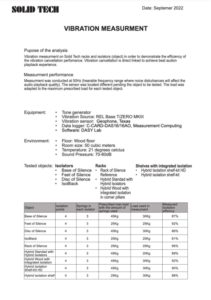

Measurement analysis
ISOLATORS product portfolio
Bridge of Silence
Isolator data sheet
Isoblack
ISOBLACK 3 PACK
Max load-capacity approx. 15kg (33lbs)
Additional compression-spring set increase the maximum load-capacity to approx 33kg (73lbs)
ISOBLACK 4 PACK
Max load-capacity approx. 20kg (44lbs)
Additional compression-spring set increase the maximum load-capacity to approx 44kg (97lbs)
Feet of Silence
Feet of Silence are available in 4/pack or 3/pack. In addition, equipped with extension-springs suitable for either 1-3 kg (2,2-6,6lbs) per foot or 3-6 kg per foot (6,6-13,2lbs).
Feet of Silence are available in 4/pack or 3/pack. In addition, equipped with extension-springs suitable for either 1-3 kg (2,2-6,6lbs) per foot or 3-6 kg per foot (6,6-13,2lbs).
Discs of Silence
Discs of Silence Heavy-Duty 4/pack
Max load-capacity approx. 175kg (385lbs)
Optimum operating range, eigth springs attached, 53-120kg (117-264lbs)
Optimum operating range, nine springs attached, 60-135kg (132-297lbs)
Optimum operating range, ten springs attached, 67-150kg (148-330lbs)
Optimum operating range, twelve springs attached, 80-175kg (176-385lbs)
Discs of Silence 4/pack
Max load-capacity approx. 45kg (99lbs)
Optimum operating range, 20-45kg (44-99lbs)
Additional spring set increase the maximum load-capacity to approx 90kg (198lbs) and then the optimum operating range is increased to 40-90kg (88-198lbs)
Discs of Silence 3/pack
Max load-capacity approx. 33kg (73lbs)
Optimum operating range, 15-33kg (33-73lbs)
Additional spring set increase the maximum load-capacity to approx 66kg (145lbs) and then the optimum operating range is increased to 30-66kg (66-145lbs)
Bridge of Silence
Solid Tech Bridge of Silence 2.0 is developed to increase the clarity of the sound.
The Bridge of Silence is made of concrete that is both heavy in order to keep the cable straight and an irregular compound that reduces static, boosting performance of purity and clarity.
- Reduced Interference: Placing cables directly on the floor or in contact with surfaces can lead to interference from vibrations and electromagnetic fields. Cable lifters elevate the cables, reducing the chance of interference and preserving signal integrity.
- Improved Airflow: Elevating cables can improve airflow around them, which will prevent heat buildup and potential degradation of signal quality over time.
- Prevention of Cable Damage: Keeping cables off the floor will prevent them from being stepped on or snagged, reducing the risk of damage and ensuring longevity.
- Enhanced Aesthetics: Cable lifters will contribute to a cleaner and more organized appearance in an audio setup, especially if cables need to be routed across a room or around furniture.
- Sonic Benefits: Cable lifters will improve sound quality by minimizing vibrations and interference, elevated cables result in a cleaner and more detailed sound reproduction. Cables situated on the floor are affected by external and internal vibrations that decreases the sounds purity and clearness. By using the Bridge of Silence 2.0 the cables are uphold on a high-quality o-ring that reduces the external and internal vibrations to a minimum,
- Sold in pairs
- Weight: 0,65kg/pc
- Dimensions: 165x82x80mm (LxWxH
